Single-tank system for electrolytic degreasing, electropolishing and electroplating of surfaces.
The table-top electroplating tanks for functional and decorative surface treatment in the TG appliance series can be used as electroplating or rinsing tanks. Supplementary accessories and anodes enable reliable surface treatment for various
areas of application.
The TG single tank system with a tank volume of 5 l / 10 l / 20 l / 50 l and 100 l allows treatment tanks to be individually configured. The table galvanising tanks can be converted to galvanising tanks with the ‘E’ upgrade kit or to flow rinses with the ‘S’ upgrade kit. Each tank can be equipped with a clip-on goods movement device with continuous forward and reverse movement or as a continuously adjustable device. The higher side walls and the folded, flat cover made of clear PVC prevent contamination and evaporation of the bath during electroplating. For bath heating, we offer Teflon or stainless steel heating elements with temperature control and dry-run protection, adapted to the tank sizes.
|
Without floor drain hand
|
Wall thickness
|
Length
|
Width
|
Height
|
||||
|---|---|---|---|---|---|---|---|---|
|
|
|
|
inside
|
outside
|
inside
|
outside
|
inside
|
outside
|
|
TG 5
|
8
|
200
|
391
|
150
|
212
|
190
|
226
|
|
TG 10
TG 20 TG 50 |
|||||||
|
With floor drain handle
|
Wall thickness
|
Length
|
Width
|
Height
|
||||
|---|---|---|---|---|---|---|---|---|
|
|
|
|
inside
|
outside
|
inside
|
outside
|
inside
|
outside
|
|
TG 5
|
6
|
200
|
391
|
150
|
212
|
180
|
326
|
|
||||||||
|
|
TG 5
|
TG 10
|
TG 20
|
TG 50
|
|---|---|---|---|---|
|
Dimensions
|
100 x 150 mm
2 terminal lugs
150 mm side
|
150 x 200 mm
2 terminal lugs
200 mm side
|
250 x 200 mm
2 connection lugs
250 mm side
|
250 x 350 mm
2 connection lugs
250 mm side
|
|
TG 5
|
TG 10
|
|---|---|
|
100 x 150 mm 2 terminal lugs 150 page |
150 x 200 mm 2 terminal lugs 200 page |
|
TG 20
|
TG 50
|
|
250 x 200 mm 2 terminal lugs 250 page |
250 x 350 mm 2 terminal lugs 250 page |
Application: Standard tub for standing rinsing or decapping
Application: Standard tub for standing rinsing or decapping
Application: Standard tank for electrochemical processes without fabric movement.

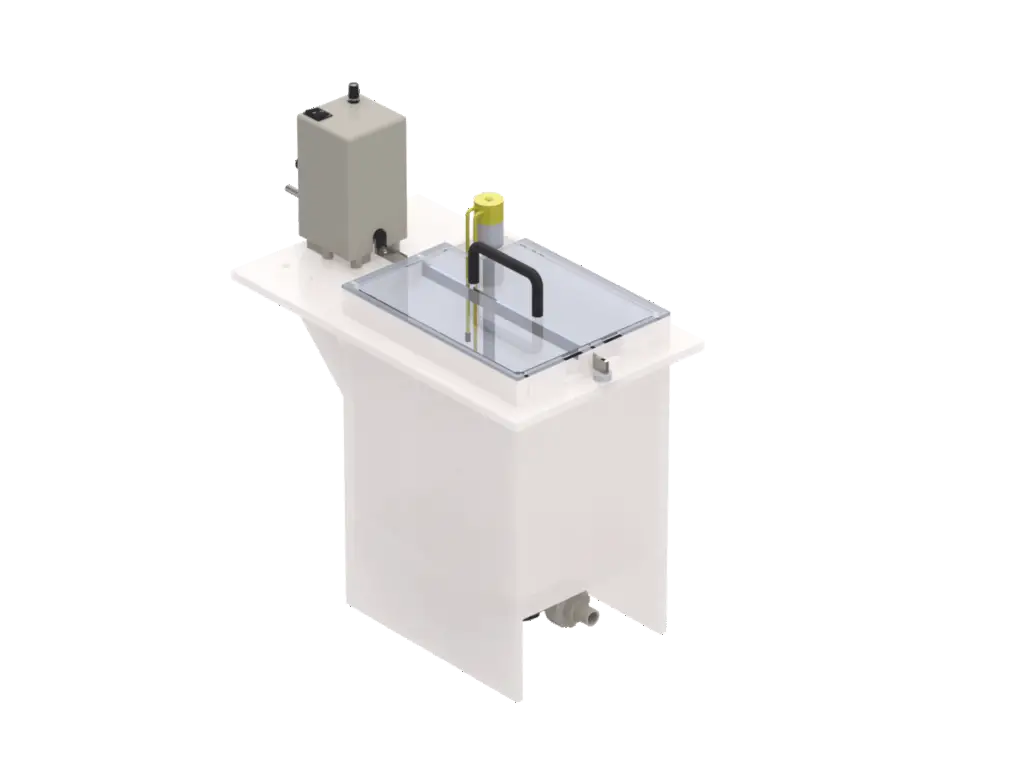

Application: Standard tank for electrochemical processes with product movement.
Application: Standard bowl as flow sink
Application: Standard bowl as a pedestal/spray sink or diligence/spray sink
Application: Standard bowl as 2-compartment cascade or 3-compartment cascade sink.
